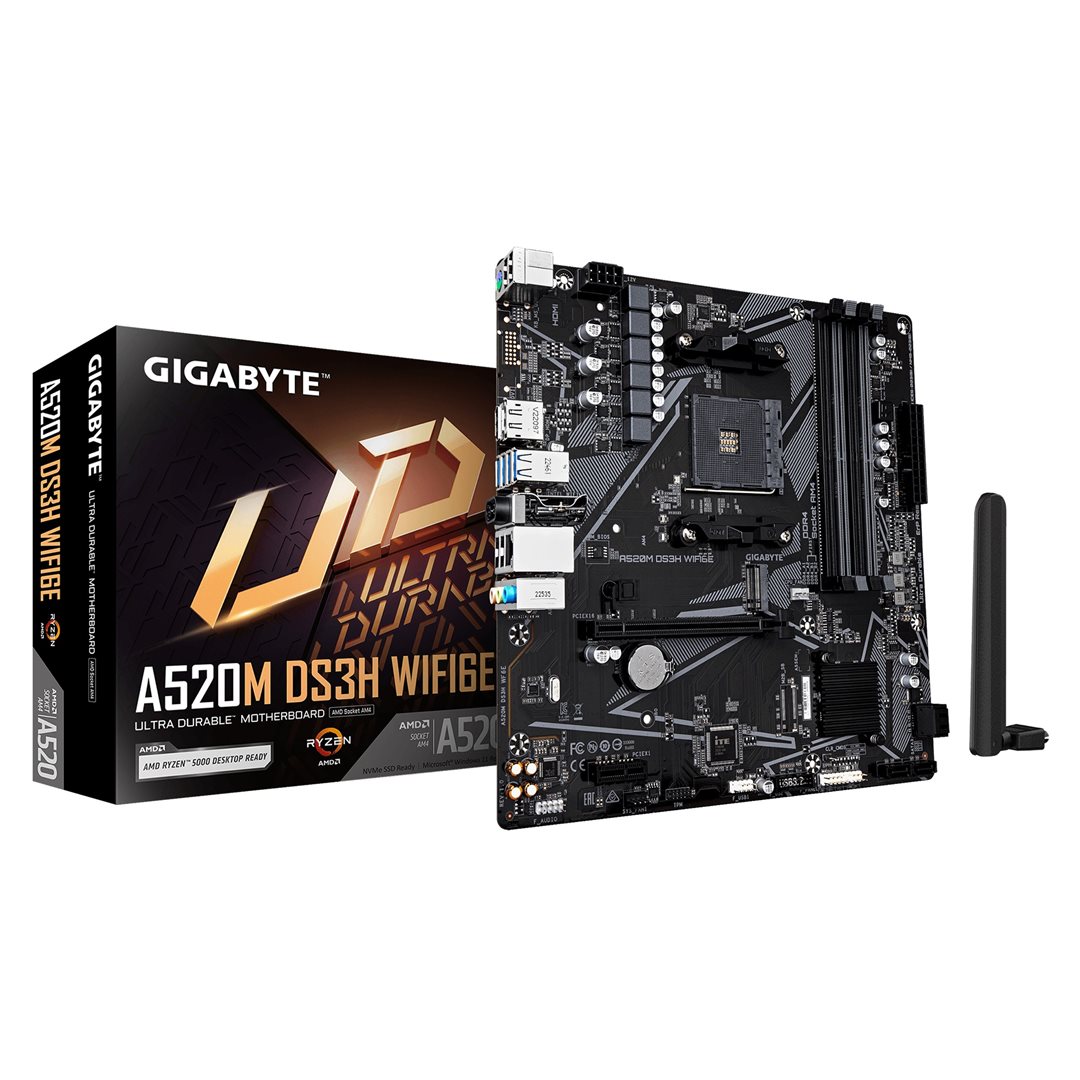

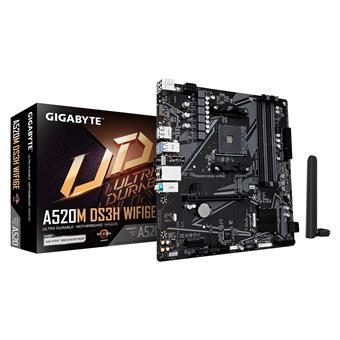

GIGABYTE A520M DS3H WIFI6E

Gigabyte A520M DS3H WIFI6E

Chipset: AMD A520
Rozměrový formát: Micro ATX Form Factor; 24.4cm x 24.4cm
Podpora pro procesory:

• AMD Ryzen™ 5000 G-Series Processors
• AMD Ryzen™ 5000 Series Processors
• AMD Ryzen™ 4000 G-Series Processors
• AMD Ryzen™ 3000 G-Series Processors
• AMD Ryzen™ 3000 Series Processors

Patice procesoru: AM4

Paměť:

• 4x DDR4 DIMM sloty podporující až 128GB (32GB každý slot) paměti
• Podpora pro DDR4 4733(O.C.) / 4600(O.C.) / 4400(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C) / 3400(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz moduly
• Dual channel memory architecture
• Podpora pro ECC Un-buffered DIMM 1Rx8/2Rx8 moduly
• Podpora pro non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 moduly
• Podpora pro XMP

Grafické porty:
Integrated Graphics Processor with AMD Radeon™ Graphics support:

• 1 x DisplayPort, supporting a maximum resolution of 5120x2880@60 Hz
• 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz

Zvuková karta:

• Realtek® Audio CODEC
• High Definition Audio
• 2/4/5.1/7.1-channel

Ethernet: Realtek® GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)
WLAN + Bluetooth: MediaTek Wi-Fi 6E MT7902

• WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
• BLUETOOTH 5.3
• Support for 11ax 160MHz wireless standard

Rozšiřující sloty:

1 x PCI Express x16 slot, integrated in the CPU:

• Supporting PCIe 3.0 x16 mode

1 x PCI Express x1 slot, integrated in the Chipset:

• Supporting PCIe 3.0 x1 mode

RAID řadič: RAID 0, RAID 1, RAID 10

Úložný prostor:

1 x M.2 connector, integrated in the CPU, supporting Socket 3, M key, type 2280 SSDs:

• Supporting SATA and PCIe 3.0 x4/x2 SSDs

4 x SATA 6Gb/s connectors, integrated in the Chipset:

• Supporting for RAID 0, RAID 1, and RAID 10

USB:

CPU:

• 4 x USB 3.2 Gen 1 ports on the back panel

Chipset:

• 2 x USB 3.2 Gen 1 ports available through the internal USB header
• 6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header)

Interní porty:
Napájení

• 1× 24-pin ATX main power connector
• 1× 8-pin ATX 12V power connector
• 1× CPU fan header
• 1× system fan header

Související s úložištěm

• 1× M.2 Socket 3 connector
• 4× SATA 6Gb/s connectors

USB

• 1× USB 3.2 Gen 1 header
• 1× USB 2.0/1.1 header

Ostatní

• 1× front panel header
• 1× front panel audio header
• 1× Trusted Platform Module (TPM) header
• 1× Clear CMOS jumper

Porty na zadním panelu:

• 1 x PS/2 keyboard/mouse port
• 1 x DisplayPort (Note )
• 1 x HDMI port (Note )
• 4 x USB 3.2 Gen 1 ports
• 4 x USB 2.0/1.1 ports
• 1 x RJ-45 port
• 2 x antenna connectors (1T1R)

BIOS:

• 1 x 128 Mbit flash
• Use of licensed AMI UEFI BIOS
• PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

H/W Monitorování:

• Voltage detection
• Temperature detection
• Fan speed detection
• Fan fail warning
• Fan speed control

OS: Podpora pro Windows 11 64-bit a Windows 10 64-bit
